ZMOTION Detection Module II







Motion Detection and Control with the ZMOTION® Detection Module II



Zilog’s ZMOTION® Detection Module II (ZDM II) is a complete motion detection solution ideally suited for applications that need to detect human presence. It is an excellent solution for detecting people as they approach entrances, kiosks, product displays, vending machines, appliances and advertising displays.



Used in lighting controls, access control, display systems and general-purpose proximity-sensing applications, it is also an easy way to add energy management capability to various applications such as vending machines and appliances.







The ZMOTION Detection Module II supports two modes of operation:



Serial Mode. Command, control and configuration is performed over a simple 9600bps asynchronous interface to an MCU that is already required for the application.


Hardware Mode. Stand-alone motion detection with analog inputs for sensitivity, 'active on-time' control and ambient light detection.



The Z8FS040 Motion Detection MCU included on the module is programmed with application software that provides these Hardware and Serial Modes of operation. This application software can be modified and replaced with your own custom application while taking full advantage of ZMOTION® technology.




ZEPIR0BAS02MODG ZMOTION Detection Module II with Right-Angle Connector

ZEPIR0BBS02MODG ZMOTION Detection Module II with Straight-Pin Connector

ZEPIR000103KITG ZMOTION Module II Evaluation Kit

Order Samples Product Brief (PB0244)

Product Information Product Specification (PS0305)

Development Kit User Manual (UM0260)

ZDS II Development Tools Technical Support

Schematic Diagrams Zilog Forum










Reference Designs, Application Notes and Source Code

Reference Designs



ZMOTION Detection Module II Reference Design (RD0026) + source code
Motion Sensing & LED Control with a ZMOTION/ IXYS Display (RD0003) + source code 1, source code 2, source code 3

Application Notes
•  Controlling Power with the ZMOTION Detection Module and Clare Solid State Relays (AN0319)
High Brightness LED Reference Design (AN0309) + source code
•  ZMOTION Detection Module Application Walkthrough (AN0307) + source code
Power Management and Customer Sensing (AN0301) + source code

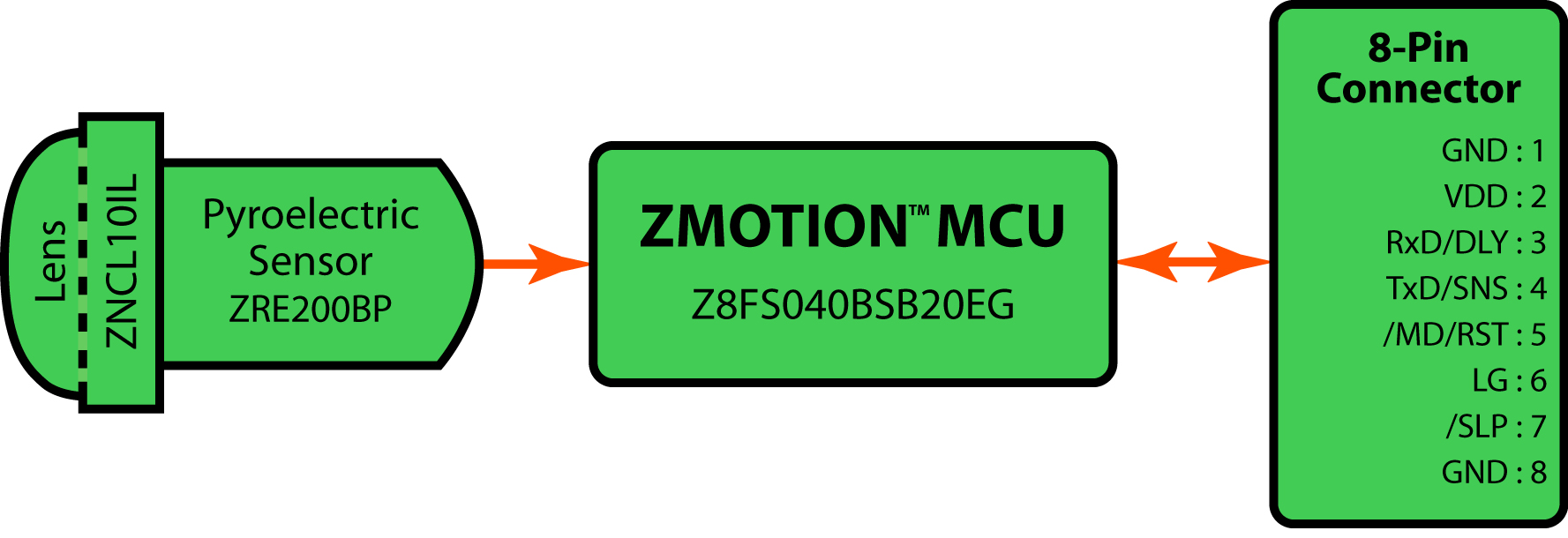

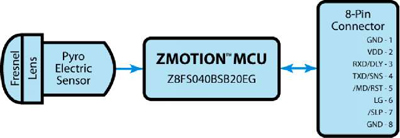

ZMOTION Detection Module II Block Diagram



Product Features
•  Complete motion detection solution including pyroelectric sensor and clip-on lens
•  Direct sensor interface and advanced software based motion detection algorithms provide superior sensitivity and stability
•  Small form factor: only 25.5 mm x 16.7 mm (1" x 0.66")
•  Circular 9.0 mm lens
•  8-pin interface connector with two orientations available (right-angle and straight)
•  95° detection pattern with adjustable range/sensitivity
•  Simple hardware or advanced serial (UART) based configuration and interface
Adjustable sensitivity and output activation time and support for Ambient Light Sensor input
Serial mode includes unique Hyper Sense feature that automatically increases sensitivity after motion is detected
Sleep Mode for low power applications
Minimal components ensures high reliability (no electrolytic capacitors)
Modify the application code to suite application requirements
2.7 V to 3.6 V operation from 0°C to 70°C

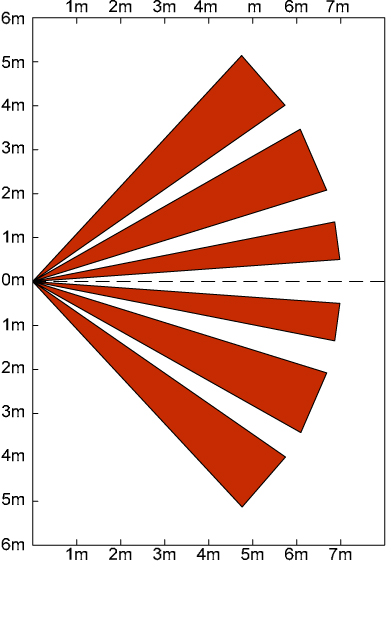

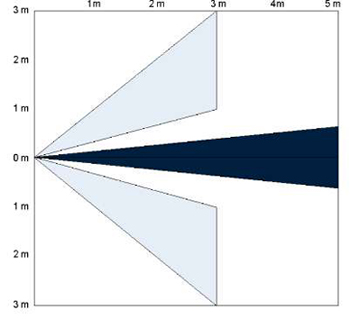

Typical Detection Pattern
